About Our Panel Meters
Digital Panel Meters
Analog Electric digital panel meters are precision instruments designed for accurate measurement and clear display of electrical parameters in industrial environments. Built with solid-state circuitry and conforming to common industry-standard mounting, they integrate seamlessly into standard panel boards and switchgear.
The bright red LED display with dark tinted window ensures glare-free readability in varying ambient light conditions. All components — including the transformer and terminals — are mounted directly on the PCB, eliminating loose wiring and reducing the risk of connection failures in high-vibration environments.
Zero and full scale adjustments are accessible via trim pots after removing the front window — no disconnection required. Slide-and-lock standard mounting clamps allow fast, secure panel installation without additional tools.
CE Mark
Directive 2009/125/EC
Cert No. US-AGCY-24-04252 · Valid to Apr 2027
Analog Panel Meters
For applications where a traditional pointer-and-scale display is preferred, Analog Electric also manufactures analog panel ammeters and voltmeters in 72 × 72, 96 × 96 and 144 × 144 mm square bezel sizes.
They are available for AC and DC measurement, either direct connected or for use with a current transformer (AC) or an external shunt (DC). Contact us with your required type, size and range.
Salient Features
Digital — Electrical
01
Zero and full scale adjustments possible using trim pots accessible after removing the front window — no need to disconnect the meter.
02
Auxiliary supply available in 110V AC or 230V AC ±10%. Other ratings available on request.
03
Red LED display of appropriate brightness coupled with a dark tinted window delivers glare-free, unscattered figures with sharp, clearly readable features.
04
State-of-the-art solid state circuitry for reliable, long-term performance in demanding industrial environments.
05
All components including transformer and terminals mounted directly on the PCB — eliminating loose wiring and enhancing reliability through error-free execution.
Digital — Construction
06
Strong and durable terminals mounted directly on the PCB for secure, vibration-resistant connections.
07
Dimensions and panel cut-out size conforming to common industry-standard mounting for universal compatibility with standard panel boards.
08
Universally accepted slide-and-lock mounting clamps for fast, tool-free panel installation.
Analog Panel Meters
09
Analog ammeters and voltmeters with a traditional pointer-and-scale display, for applications where an analog readout is preferred.
10
AC and DC measurement — direct connected, CT-operated (AC) or for use with an external shunt (DC), to suit the measured range.
11
Available in 72 × 72, 96 × 96 and 144 × 144 mm square bezel sizes.
Applications
Analog Electric digital and analog panel meters are used across a wide range of industrial and commercial electrical applications wherever accurate, readable parameter display is required.
- Electrical distribution panels and switchgear
- Motor control centres (MCC)
- Power distribution boards
- Industrial machinery and process equipment
- Energy monitoring and metering systems
- Generator control panels
- UPS and battery monitoring systems
- HVAC control panels
At a Glance — Digital
DISPLAY
3 or 3½ digit red LED, 14.2mm
ACCURACY
Class 1.0 — ±0.5% + 5 digits
MOUNTING
Common industry-standard mounting, slide & lock clamps
SUPPLY
110V AC or 230V AC ±10%
WARRANTY
24 months against manufacturing defects
Technical Specifications
Standard specifications applicable across the Digital Panel Meter range. Input-specific parameters are listed in the product catalog below. Specifications for analog panel meters are available on request.
| Parameter | Specification |
|---|---|
| Input | As per product chart — see catalog below |
| Auxiliary Supply | 110V AC or 230V AC, ±10% @ 50 Hz |
| Accuracy | Class 1.0 — ±0.5% of reading + 5 digits |
| Resolution | 1 in 200 |
| Display | 3 or 3½ digit, 14.2mm seven-segment RED LED |
| Polarity Indication | " – " indicated on display |
| Over Range Indication | " 1 " at most significant digit |
| Power Consumption | Less than 5 VA |
| Ambient Temperature | 0 – 50°C |
| Humidity | < 95%, non-condensing |
| Weight | 500g (typical) |
| Bezel Dimensions | 96 × 48 mm, Depth 104 mm |
| Panel Cut-Out | 44 +0.5 × 90.5 +0.5 mm |
| Mounting | Slide & lock clamp with adjustable screw |
| Warranty | 24 months against manufacturing defects |
Product Dimensions
Front view, side view, and rear terminal layout for both standard digital panel meter sizes. All dimensions in mm per common industry-standard mounting. Dimensions for analog panel meters are available on request.

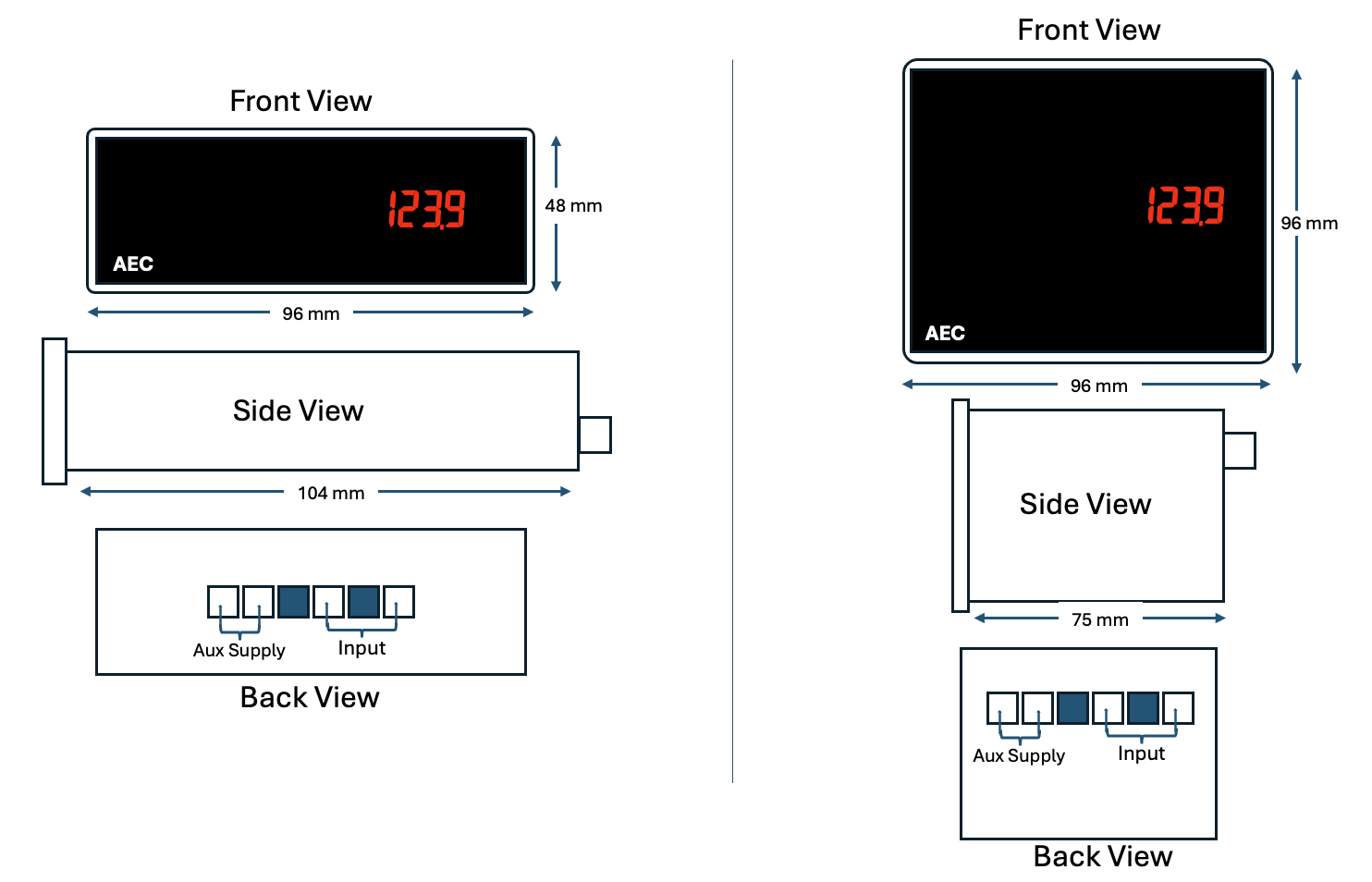

Fig 1. Digital Panel Meter — Dimensional Drawing · Type A: 96×48×104 mm · Type B: 96×96×75 mm · All dimensions in mm · Copyright Analog Electric Company
TYPE A — 96 × 48 × 104 mm
| Bezel | 96 × 48 mm |
| Depth | 104 mm |
| Panel Cut-Out | 44 +0.5 × 90.5 +0.5 mm |
TYPE B — 96 × 96 × 75 mm
| Bezel | 96 × 96 mm |
| Depth | 75 mm |
| Panel Cut-Out | 92 +0.5 × 92 +0.5 mm |
Product Catalog
Full range of Digital Panel Meter variants. Use the filters to find the model that matches your requirement. Analog panel meters will be added to the catalog soon — in the meantime, contact us or request a quote for analog ammeters and voltmeters.
| Part Number | Meter Type | Size (mm) | AC / DC | Range | Qty | |
|---|---|---|---|---|---|---|
| AEC-DPM-AM-96x48-AC-0-50A | Ammeter | 96×48 | AC | 0 – 50A | — | |
| AEC-DPM-AM-96x48-AC-0-100A | Ammeter | 96×48 | AC | 0 – 100A | — | |
| AEC-DPM-AM-96x48-AC-0-150A | Ammeter | 96×48 | AC | 0 – 150A | — | |
| AEC-DPM-AM-96x48-AC-0-200A | Ammeter | 96×48 | AC | 0 – 200A | — | |
| AEC-DPM-AM-96x48-DC-0-50A | Ammeter | 96×48 | DC | 0 – 50A | — | |
| AEC-DPM-AM-96x48-DC-0-100A | Ammeter | 96×48 | DC | 0 – 100A | — | |
| AEC-DPM-AM-96x48-DC-0-150A | Ammeter | 96×48 | DC | 0 – 150A | — | |
| AEC-DPM-AM-96x48-DC-0-200A | Ammeter | 96×48 | DC | 0 – 200A | — | |
| AEC-DPM-AM-96x96-AC-0-50A | Ammeter | 96×96 | AC | 0 – 50A | — | |
| AEC-DPM-AM-96x96-AC-0-100A | Ammeter | 96×96 | AC | 0 – 100A | — | |
| AEC-DPM-AM-96x96-AC-0-150A | Ammeter | 96×96 | AC | 0 – 150A | — | |
| AEC-DPM-AM-96x96-AC-0-200A | Ammeter | 96×96 | AC | 0 – 200A | — | |
| AEC-DPM-AM-96x96-DC-0-50A | Ammeter | 96×96 | DC | 0 – 50A | — | |
| AEC-DPM-AM-96x96-DC-0-100A | Ammeter | 96×96 | DC | 0 – 100A | — | |
| AEC-DPM-AM-96x96-DC-0-150A | Ammeter | 96×96 | DC | 0 – 150A | — | |
| AEC-DPM-AM-96x96-DC-0-200A | Ammeter | 96×96 | DC | 0 – 200A | — | |
| AEC-DPM-VM-96x48-AC-0-300V | Voltmeter | 96×48 | AC | 0 – 300V | — | |
| AEC-DPM-VM-96x48-AC-0-500V | Voltmeter | 96×48 | AC | 0 – 500V | — | |
| AEC-DPM-VM-96x48-AC-0-600V | Voltmeter | 96×48 | AC | 0 – 600V | — | |
| AEC-DPM-VM-96x48-DC-0-300V | Voltmeter | 96×48 | DC | 0 – 300V | — | |
| AEC-DPM-VM-96x48-DC-0-500V | Voltmeter | 96×48 | DC | 0 – 500V | — | |
| AEC-DPM-VM-96x48-DC-0-600V | Voltmeter | 96×48 | DC | 0 – 600V | — | |
| AEC-DPM-VM-96x96-AC-0-300V | Voltmeter | 96×96 | AC | 0 – 300V | — | |
| AEC-DPM-VM-96x96-AC-0-500V | Voltmeter | 96×96 | AC | 0 – 500V | — | |
| AEC-DPM-VM-96x96-AC-0-600V | Voltmeter | 96×96 | AC | 0 – 600V | — | |
| AEC-DPM-VM-96x96-DC-0-300V | Voltmeter | 96×96 | DC | 0 – 300V | — | |
| AEC-DPM-VM-96x96-DC-0-500V | Voltmeter | 96×96 | DC | 0 – 500V | — | |
| AEC-DPM-VM-96x96-DC-0-600V | Voltmeter | 96×96 | DC | 0 – 600V | — |
Analog panel meters will be added to this catalog soon. Contact our Motors & Panel Meters Division for types not listed above.
Need a specific measurement range or custom configuration?
Contact our Motors & Panel Meters Division or submit a quote request with your specifications.
